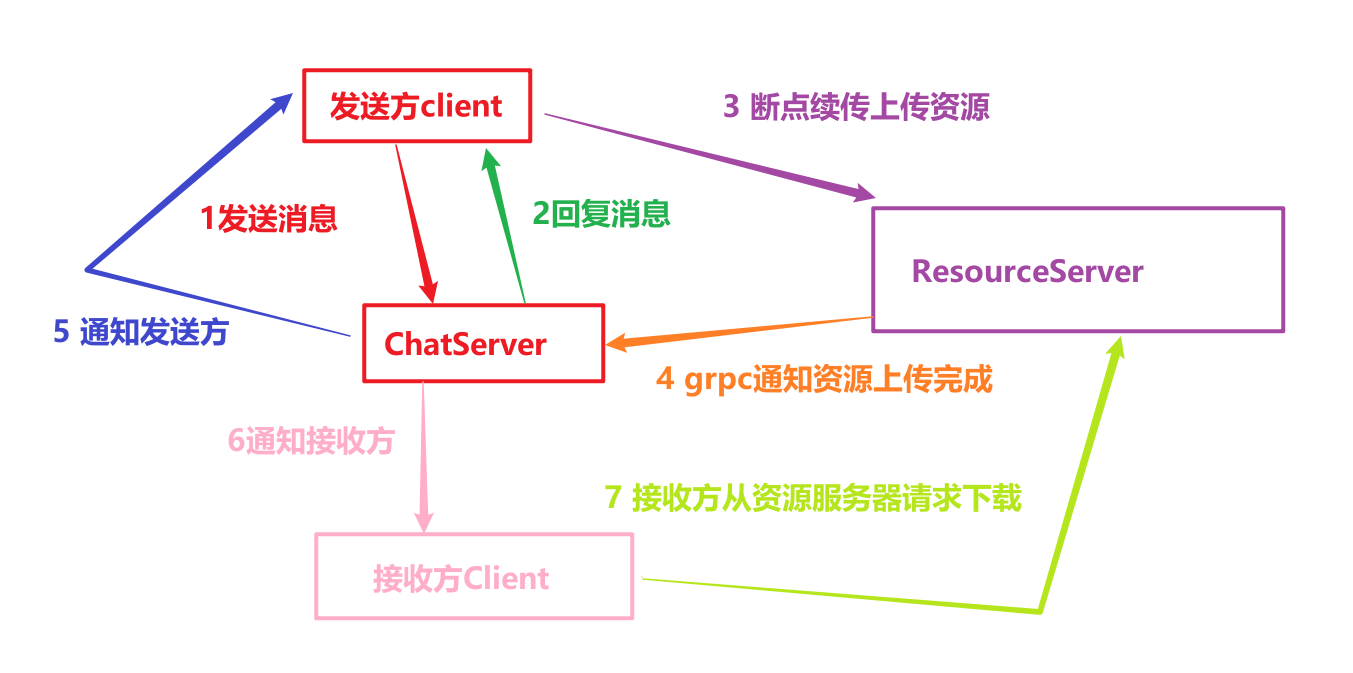

前情回顾

前面我们搞定了1，2，3以及5过程

今天主要完成

4，6和7

资源服务器grpc设置

因为资源服务器要通知ChatServer，所以要设置grpc客户端

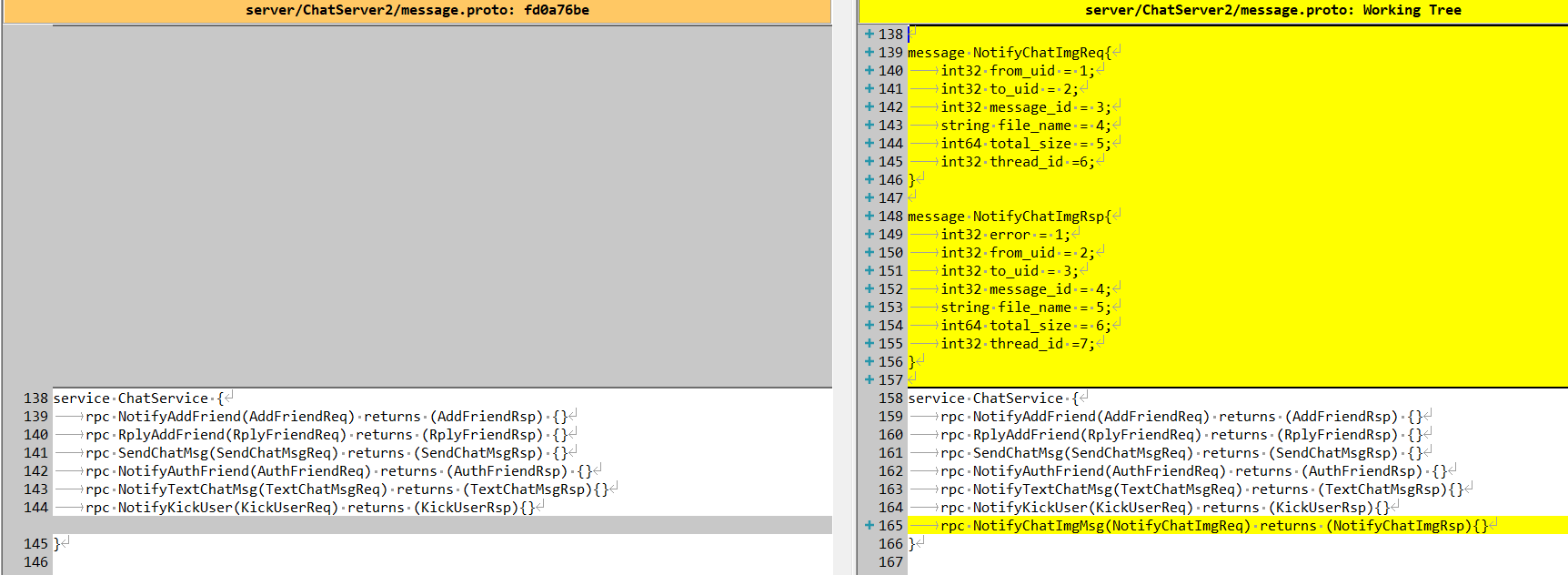

完善下proto协议，新增消息通知请求

具体代码逻辑

message NotifyChatImgReq{
    int32 from_uid = 1;
    int32 to_uid = 2;
    int32 message_id = 3;
    string file_name = 4;
    int64 total_size = 5;
    int32 thread_id =6;
}
message NotifyChatImgRsp{
    int32 error = 1;
    int32 from_uid = 2;
    int32 to_uid = 3;
    int32 message_id = 4;
    string file_name = 5;
    int64 total_size = 6;
    int32 thread_id =7;
}
service ChatService {
    rpc NotifyAddFriend(AddFriendReq) returns (AddFriendRsp) {}
    rpc RplyAddFriend(RplyFriendReq) returns (RplyFriendRsp) {}
    rpc SendChatMsg(SendChatMsgReq) returns (SendChatMsgRsp) {}
    rpc NotifyAuthFriend(AuthFriendReq) returns (AuthFriendRsp) {}
    rpc NotifyTextChatMsg(TextChatMsgReq) returns (TextChatMsgRsp){}
    rpc NotifyKickUser(KickUserReq) returns (KickUserRsp){}
    rpc NotifyChatImgMsg(NotifyChatImgReq) returns (NotifyChatImgRsp){}
}

实现grpc客户端逻辑如下:

#pragma once
#include "const.h"
#include "Singleton.h"
#include "ConfigMgr.h"
#include "message.grpc.pb.h"
#include "message.pb.h"
#include <grpcpp/grpcpp.h>
#include <queue>
#include <condition_variable>
using grpc::Channel;
using grpc::Status;
using grpc::ClientContext;
using message::ChatService;
using message::NotifyChatImgReq;
using message::NotifyChatImgRsp;
class ChatServerConPool {
public:
    ChatServerConPool(size_t poolSize, std::string host, std::string port)
        : poolSize_(poolSize), host_(host), port_(port), b_stop_(false) {
        for (size_t i = 0; i < poolSize_; ++i) {
            std::shared_ptr<Channel> channel = grpc::CreateChannel(host + ":" + port,
                grpc::InsecureChannelCredentials());
            connections_.push(ChatService::NewStub(channel));
        }
    }
    ~ChatServerConPool() {
        std::lock_guard<std::mutex> lock(mutex_);
        Close();
        while (!connections_.empty()) {
            connections_.pop();
        }
    }
    std::unique_ptr<ChatService::Stub> getConnection() {
        std::unique_lock<std::mutex> lock(mutex_);
        cond_.wait(lock, [this] {
            if (b_stop_) {
                return true;
            }
            return !connections_.empty();
            });
        //如果停止则直接返回空指针
        if (b_stop_) {
            return  nullptr;
        }
        auto context = std::move(connections_.front());
        connections_.pop();
        return context;
    }
    void returnConnection(std::unique_ptr<ChatService::Stub> context) {
        std::lock_guard<std::mutex> lock(mutex_);
        if (b_stop_) {
            return;
        }
        connections_.push(std::move(context));
        cond_.notify_one();
    }
    void Close() {
        b_stop_ = true;
        cond_.notify_all();
    }
private:
    atomic<bool> b_stop_;
    size_t poolSize_;
    std::string host_;
    std::string port_;
    std::queue<std::unique_ptr<ChatService::Stub>> connections_;
    std::mutex mutex_;
    std::condition_variable cond_;
};
class ChatServerGrpcClient :public Singleton<ChatServerGrpcClient>
{
    friend class Singleton<ChatServerGrpcClient>;
public:
    ~ChatServerGrpcClient() {
    }
    NotifyChatImgRsp NotifyChatImgMsg(int message_id, std::string chatserver);
private:
    ChatServerGrpcClient();
    //sever_ip到连接池的映射,  <chatserver1,std::unique_ptr<ChatServerConPool>>
    std::unordered_map<std::string, std::unique_ptr<ChatServerConPool>> _hash_pools;
};

具体实现

#include "ChatServerGrpcClient.h"
#include "MysqlMgr.h"
NotifyChatImgRsp  ChatServerGrpcClient::NotifyChatImgMsg(int message_id,std::string chatserver)
{
    ClientContext context;
    NotifyChatImgRsp reply;
    NotifyChatImgReq request;
    request.set_message_id(message_id);
    if (_hash_pools.find(chatserver) == _hash_pools.end()) {
        reply.set_error(ErrorCodes::ServerIpErr);
        return reply;
    }
    auto chat_msg = MysqlMgr::GetInstance()->GetChatMsgById(message_id);
    request.set_file_name(chat_msg->content);
    request.set_from_uid(chat_msg->sender_id);
    request.set_to_uid(chat_msg->recv_id);
    request.set_thread_id(chat_msg->thread_id);
    // 资源文件路径
    auto file_dir = ConfigMgr::Inst().GetFileOutPath();
    //该消息是接收方客户端发送过来的,服务器将资源存储在发送方的文件夹中
    auto uid_str = std::to_string(chat_msg->sender_id);
    auto file_path = (file_dir / uid_str / chat_msg->content);
    boost::uintmax_t file_size = boost::filesystem::file_size(file_path);
    request.set_total_size(file_size);
    auto &pool_ = _hash_pools[chatserver];
    auto stub = pool_->getConnection();
    Status status = stub->NotifyChatImgMsg(&context, request, &reply);
    Defer defer([&stub, &pool_, this]() {
        pool_->returnConnection(std::move(stub));
        });
    if (status.ok()) {
        return reply;
    }
    else {
        reply.set_error(ErrorCodes::RPCFailed);
        return reply;
    }
}
ChatServerGrpcClient::ChatServerGrpcClient()
{
    auto& gCfgMgr = ConfigMgr::Inst();
    std::string host1 = gCfgMgr["chatserver1"]["Host"];
    std::string port1 = gCfgMgr["chatserver1"]["Port"];
    _hash_pools["chatserver1"] = std::make_unique<ChatServerConPool>(5, host1, port1);
    std::string host2 = gCfgMgr["chatserver2"]["Host"];
    std::string port2 = gCfgMgr["chatserver2"]["Port"];
    _hash_pools["chatserver2"] = std::make_unique<ChatServerConPool>(5, host2, port2);
}

实现了通知接口，用来通知ChatServer图片消息上传完成，让ChatServer再通知其他客户端.

ChatServer响应资源服务器通知

ChatServer的proto也需要进行同样配置，这里略去

具体在ChatServiceImpl中添加响应消息通知的逻辑

Status ChatServiceImpl::NotifyChatImgMsg(::grpc::ServerContext* context, const ::message::NotifyChatImgReq* request, ::message::NotifyChatImgRsp* response)
{
    //查找用户是否在本服务器
    auto uid = request->to_uid();
    auto session = UserMgr::GetInstance()->GetSession(uid);
    Defer defer([request, response]() {
        //设置具体的回包信息
        response->set_error(ErrorCodes::Success);
        response->set_message_id(request->message_id());
        });
    //用户不在内存中则直接返回
    if (session == nullptr) {
        //这里只是返回1个状态
        return Status::OK;
    }
    //在内存中则直接发送通知对方
    session->NotifyChatImgRecv(request);
    //这里只是返回1个状态
    return Status::OK;
}

通过Session通知客户端

void CSession::NotifyChatImgRecv(const ::message::NotifyChatImgReq* request) {
    Json::Value  rtvalue;
    rtvalue["error"] = ErrorCodes::Success;
    rtvalue["message_id"] = request->message_id();
    rtvalue["sender_id"] = request->from_uid();
    rtvalue["receiver_id"] = request->to_uid();
    rtvalue["img_name"] = request->file_name();
    rtvalue["total_size"] = std::to_string(request->total_size());
    rtvalue["thread_id"] = request->thread_id();
    std::string return_str = rtvalue.toStyledString();
    //通知图片聊天信息
    Send(return_str, ID_NOTIFY_IMG_CHAT_MSG_REQ);
    return;
}

客户端获取通知

客户端收到服务器通知后，会优先查看本地资源是否存在，如果存在则直接加载图片，添加聊天记录到页面。

如果不存在则组织下载，但是也需要将消息添加到聊天界面。

 _handlers.insert(ID_NOTIFY_IMG_CHAT_MSG_REQ, [this](ReqId id, int len, QByteArray data) {
         Q_UNUSED(len);
         qDebug() << "handle id is " << id << " data is " << data;
         // 将QByteArray转换为QJsonDocument
         QJsonDocument jsonDoc = QJsonDocument::fromJson(data);
         // 检查转换是否成功
         if (jsonDoc.isNull()) {
             qDebug() << "Failed to create QJsonDocument.";
             return;
         }
         QJsonObject jsonObj = jsonDoc.object();
         qDebug() << "receive notify img chat msg req success" ;
         //收到消息后转发给页面
         auto thread_id = jsonObj["thread_id"].toInt();
         auto sender_id = jsonObj["sender_id"].toInt();
         auto message_id = jsonObj["message_id"].toInt();
         auto receiver_id = jsonObj["receiver_id"].toInt();
         auto img_name = jsonObj["img_name"].toString();
         auto total_size_str = jsonObj["total_size"].toString();
         auto total_size = total_size_str.toLongLong();
         auto uid = UserMgr::GetInstance()->GetUid();
         //客户端存储聊天记录，按照如下格式存储C:\Users\secon\AppData\Roaming\llfcchat\chatimg\uid, uid为对方uid
         QString storageDir = QStandardPaths::writableLocation(QStandardPaths::AppDataLocation);
         QString img_path_str = storageDir +"/user/"+ QString::number(uid)+ "/chatimg/" + QString::number(sender_id);
         auto file_info = UserMgr::GetInstance()->GetTransFileByName(img_name);
         //正常情况是找不到的，所以这里初始化一个文件信息放入UserMgr中管理
         if (!file_info) {
             //预览图先默认空白，md5为空
             file_info = std::make_shared<MsgInfo>(MsgType::IMG_MSG, img_path_str, CreateLoadingPlaceholder(200, 200), img_name, total_size, "");
             UserMgr::GetInstance()->AddTransFile(img_name, file_info);
         }
         file_info->_msg_id = message_id;
         file_info->_sender = sender_id;
         file_info->_receiver = receiver_id;
         file_info->_thread_id = thread_id;
         //设置文件传输的类型
         file_info->_transfer_type = TransferType::Download;
         //设置文件传输状态
         file_info->_transfer_state = TransferState::Uploading;
         auto img_chat_data_ptr = std::make_shared<ImgChatData>(file_info, "",
             thread_id, ChatFormType::PRIVATE, ChatMsgType::PIC,
             sender_id, MsgStatus::READED);
         emit sig_img_chat_msg(img_chat_data_ptr);
         //组织请求，准备下载
         QJsonObject jsonObj_send;
         jsonObj_send["name"] = img_name;
         jsonObj_send["seq"] = file_info->_seq;
         jsonObj_send["trans_size"] = "0";
         jsonObj_send["total_size"] = QString::number(file_info->_total_size);
         jsonObj_send["token"] = UserMgr::GetInstance()->GetToken();
         jsonObj_send["sender_id"] = sender_id;
         jsonObj_send["receiver_id"] = receiver_id;
         jsonObj_send["message_id"] = message_id;
         jsonObj_send["uid"] = uid;
         //客户端存储聊天记录，按照如下格式存储C:\Users\secon\AppData\Roaming\llfcchat\chatimg\uid, uid为对方uid
         QDir chatimgDir(img_path_str);
         jsonObj["client_path"] = img_path_str;
         if (!chatimgDir.exists()) {
             chatimgDir.mkpath(".");  // 创建当前路径
         }
         QJsonDocument doc(jsonObj_send);
         auto send_data = doc.toJson();
         FileTcpMgr::GetInstance()->SendData(ID_IMG_CHAT_DOWN_REQ, send_data);
     });

收到服务器通知后，开始构造json数据，发送ID_IMG_CHAT_DOWN_REQ请求

聊天记录添加

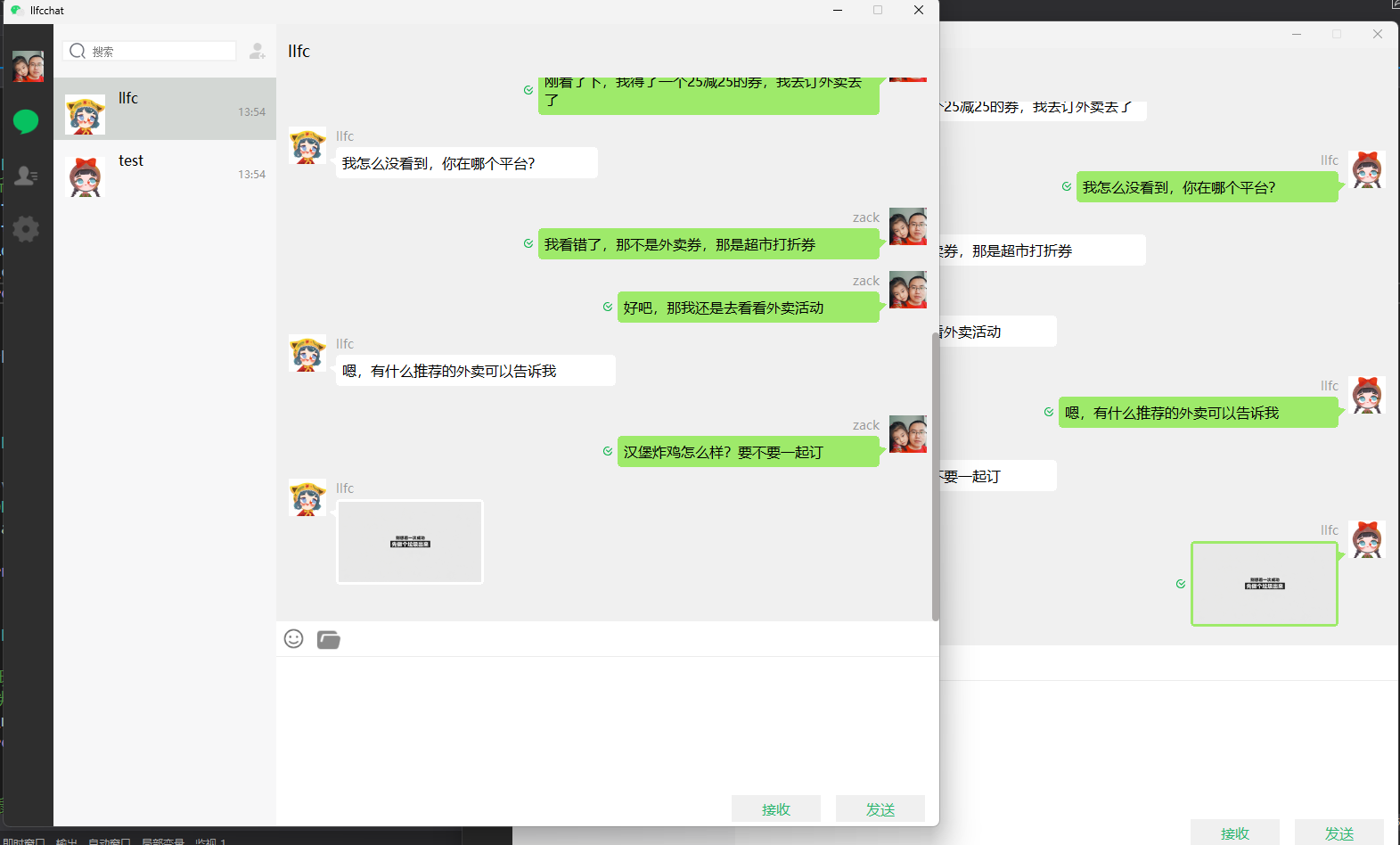

客户端在请求服务器资源的时候，因为本地没有资源，可以先在聊天界面生成一个预览的空白图片，同时显示进度条

这部分逻辑是在客户端的tcpmgr中处理服务器通知聊天消息的逻辑里

_handlers.insert(ID_NOTIFY_IMG_CHAT_MSG_REQ, [this](ReqId id, int len, QByteArray data) {
    //...
    //发送给界面显示
   emit sig_img_chat_msg(img_chat_data_ptr);
}

客户端将图片消息发送给界面显示

在ChatDialog的构造函数中添加信号槽链接

connect(TcpMgr::GetInstance().get(), &TcpMgr::sig_img_chat_msg,
        this, &ChatDialog::slot_img_chat_msg);

ChatDialog收到该信号后，会触发添加消息的逻辑

void ChatDialog::slot_img_chat_msg(std::shared_ptr<ImgChatData> imgchat) {
    //更新数据
    auto thread_id = imgchat->GetThreadId();
    auto thread_data = UserMgr::GetInstance()->GetChatThreadByThreadId(thread_id);
    thread_data->AddMsg(imgchat);
    if (_cur_chat_thread_id != thread_id) {
        return;
    }
    ui->chat_page->AppendOtherMsg(imgchat);
}

添加其他消息的逻辑, 此处都是将其他人发送的图片消息添加到聊天界面显示

void ChatPage::AppendOtherMsg(std::shared_ptr<ChatDataBase> msg) {
    auto self_info = UserMgr::GetInstance()->GetUserInfo();
    ChatRole role;
    if (msg->GetSendUid() == self_info->_uid) {
        role = ChatRole::Self;
        ChatItemBase* pChatItem = new ChatItemBase(role);
        pChatItem->setUserName(self_info->_name);
        SetSelfIcon(pChatItem, self_info->_icon);
        QWidget* pBubble = nullptr;
        if (msg->GetMsgType() == ChatMsgType::TEXT) {
            pBubble = new TextBubble(role, msg->GetMsgContent());
        }
        else if (msg->GetMsgType() == ChatMsgType::PIC) {
            auto img_msg = dynamic_pointer_cast<ImgChatData>(msg);
            auto pic_bubble = new PictureBubble(img_msg->_msg_info->_preview_pix, role, img_msg->_msg_info->_total_size);
            pic_bubble->setMsgInfo(img_msg->_msg_info);
            pBubble = pic_bubble;
            //连接暂停和恢复信号
            connect(dynamic_cast<PictureBubble*>(pBubble), &PictureBubble::pauseRequested,
                this, &ChatPage::on_clicked_paused);
            connect(dynamic_cast<PictureBubble*>(pBubble), &PictureBubble::resumeRequested,
                this, &ChatPage::on_clicked_resume);
        }
        pChatItem->setWidget(pBubble);
        auto status = msg->GetStatus();
        pChatItem->setStatus(status);
        ui->chat_data_list->appendChatItem(pChatItem);
        _base_item_map[msg->GetMsgId()] = pChatItem;
    }
    else {
        role = ChatRole::Other;
        ChatItemBase* pChatItem = new ChatItemBase(role);
        auto friend_info = UserMgr::GetInstance()->GetFriendById(msg->GetSendUid());
        if (friend_info == nullptr) {
            return;
        }
        pChatItem->setUserName(friend_info->_name);
        // 使用正则表达式检查是否是默认头像
        QRegularExpression regex("^:/res/head_(\\d+)\\.jpg$");
        QRegularExpressionMatch match = regex.match(friend_info->_icon);
        if (match.hasMatch()) {
            pChatItem->setUserIcon(QPixmap(friend_info->_icon));
        }
        else {
            // 如果是用户上传的头像，获取存储目录
            QString storageDir = QStandardPaths::writableLocation(QStandardPaths::AppDataLocation);
            auto uid = UserMgr::GetInstance()->GetUid();
            QDir avatarsDir(storageDir + "/user/" + QString::number(uid) + "/avatars");
            auto file_name = QFileInfo(self_info->_icon).fileName();
            // 确保目录存在
            if (avatarsDir.exists()) {
                QString avatarPath = avatarsDir.filePath(file_name); // 获取上传头像的完整路径
                QPixmap pixmap(avatarPath); // 加载上传的头像图片
                if (!pixmap.isNull()) {
                    pChatItem->setUserIcon(pixmap);
                }
                else {
                    qWarning() << "无法加载上传的头像：" << avatarPath;
                    auto icon_label = pChatItem->getIconLabel();
                    LoadHeadIcon(avatarPath, icon_label, file_name, "self_icon");
                }
            }
            else {
                qWarning() << "头像存储目录不存在：" << avatarsDir.path();
                //创建目录
                avatarsDir.mkpath(".");
                auto icon_label = pChatItem->getIconLabel();
                QString avatarPath = avatarsDir.filePath(file_name);
                LoadHeadIcon(avatarPath, icon_label, file_name, "self_icon");
            }
        }
        QWidget* pBubble = nullptr;
        if (msg->GetMsgType() == ChatMsgType::TEXT) {
            pBubble = new TextBubble(role, msg->GetMsgContent());
        }
        else if (msg->GetMsgType() == ChatMsgType::PIC) {
            auto img_msg = dynamic_pointer_cast<ImgChatData>(msg);
            auto pic_bubble = new PictureBubble(img_msg->_msg_info->_preview_pix, role, img_msg->_msg_info->_total_size);
            pic_bubble->setMsgInfo(img_msg->_msg_info);
            pBubble = pic_bubble;
            //连接暂停和恢复信号
            connect(dynamic_cast<PictureBubble*>(pBubble), &PictureBubble::pauseRequested,
                this, &ChatPage::on_clicked_paused);
            connect(dynamic_cast<PictureBubble*>(pBubble), &PictureBubble::resumeRequested,
                this, &ChatPage::on_clicked_resume);
        }
        pChatItem->setWidget(pBubble);
        auto status = msg->GetStatus();
        pChatItem->setStatus(status);
        ui->chat_data_list->appendChatItem(pChatItem);
        _base_item_map[msg->GetMsgId()] = pChatItem;
    }
}

资源服务器响应下载请求

LogicWorker中增加请求的处理

_fun_callbacks[ID_IMG_CHAT_DOWN_REQ] = [this](std::shared_ptr<CSession> session, const short& msg_req_id,
        const string& msg_data) {
            Json::Reader reader;
            Json::Value root;
            reader.parse(msg_data, root);
            auto seq = root["seq"].asInt();
            auto name = root["name"].asString();
            auto total_size_str = root["total_size"].asString();
            auto trans_size_str = root["trans_size"].asString();
            auto file_path = ConfigMgr::Inst().GetFileOutPath();
            auto message_id = root["message_id"].asInt();
            auto sender = root["sender_id"].asInt();
            auto receiver = root["receiver_id"].asInt();
            auto token = root["token"].asString();
            auto uid = root["uid"].asInt();
            auto callback = [=](const Json::Value& result) {
                // 在异步任务完成后调用
                Json::Value rtvalue = result;
                rtvalue["error"] = ErrorCodes::Success;
                rtvalue["name"] = name;
                rtvalue["sender_id"] = sender;
                rtvalue["receiver_id"] = receiver;
                std::string return_str = rtvalue.toStyledString();
                session->Send(return_str, ID_IMG_CHAT_DOWN_RSP);
            };
            // 使用 std::hash 对字符串进行哈希
            std::hash<std::string> hash_fn;
            size_t hash_value = hash_fn(name); // 生成哈希值
            int index = hash_value % DOWN_LOAD_WORKER_COUNT;
            std::cout << "Hash value: " << hash_value << std::endl;
            //第一个包校验一下token是否合理
            if (seq == 1) {
                //从redis获取用户token是否正确
                std::string uid_str = std::to_string(uid);
                std::string token_key = USERTOKENPREFIX + uid_str;
                std::string token_value = "";
                bool success = RedisMgr::GetInstance()->Get(token_key, token_value);
                Json::Value  rtvalue;
                if (!success) {
                    rtvalue["error"] = ErrorCodes::UidInvalid;
                    std::string return_str = rtvalue.toStyledString();
                    session->Send(return_str, ID_IMG_CHAT_DOWN_RSP);
                    return;
                }
                if (token_value != token) {
                    rtvalue["error"] = ErrorCodes::TokenInvalid;
                    std::string return_str = rtvalue.toStyledString();
                    session->Send(return_str, ID_IMG_CHAT_DOWN_RSP);
                    return;
                }
            }
            auto sender_str = std::to_string(sender);
            //转化为字符串
            auto uid_str = std::to_string(uid);
            auto file_path_str = (file_path / sender_str / name).string();
            auto down_load_task = std::make_shared<DownloadTask>(session, uid, name, seq, file_path_str, callback);
            FileSystem::GetInstance()->PostDownloadTaskToQue(down_load_task,index);
    };

LogicWorker将请求投递给FileSystem队列，FileSystem队列排队处理消息，被DownloaderWorker处理

void DownloadWorker::task_callback(std::shared_ptr<DownloadTask> task)
{
    // 解码
    auto file_path_str = task->_file_path;
    //std::cout << "file_path_str is " << file_path_str << std::endl;
    boost::filesystem::path file_path(file_path_str);
    Json::Value result;
    result["error"] = ErrorCodes::Success;
    if (!boost::filesystem::exists(file_path)) {
        std::cerr << "文件不存在: " << file_path_str << std::endl;
        result["error"] = ErrorCodes::FileNotExists;
        task->_callback(result);
        return;
    }
    std::ifstream infile(file_path_str, std::ios::binary);
    if (!infile) {
        std::cerr << "无法打开文件进行读取。" << std::endl;
        result["error"] = ErrorCodes::FileReadPermissionFailed;
        task->_callback(result);
        return;
    }
    std::shared_ptr<FileInfo> file_info = nullptr;
    if (task->_seq == 1) {
        // 获取文件大小
        infile.seekg(0, std::ios::end);
        std::streamsize file_size = infile.tellg();
        infile.seekg(0, std::ios::beg);
        //如果为空，则创建FileInfo 构造数据存储
        file_info = std::make_shared<FileInfo>();
        file_info->_file_path_str = file_path_str;
        file_info->_name = task->_name;
        file_info->_seq = 1;
        file_info->_total_size = file_size;
        file_info->_trans_size = 0;
        // 立即保存到 Redis，覆盖旧数据，设置过期时间
        RedisMgr::GetInstance()->SetDownLoadInfo(task->_name, file_info);
        std::cout << "[新下载] 文件: " << task->_name
            << ", 大小: " << file_size << " 字节" << std::endl;
    }
    else {
        //断点续传，从 Redis 获取历史信息
        file_info = RedisMgr::GetInstance()->GetDownloadInfo(task->_name);
        if (file_info == nullptr) {
            // Redis 中没有信息（可能过期了）
            std::cerr << "断点续传失败，Redis 中无下载信息: " << task->_name << std::endl;
            result["error"] = ErrorCodes::RedisReadErr;
            task->_callback(result);
            infile.close();
            return;
        }
        // 验证序列号是否匹配
        if (task->_seq != file_info->_seq) {
            std::cerr << "序列号不匹配，期望: " << file_info->_seq
                << ", 实际: " << task->_seq << std::endl;
            result["error"] = ErrorCodes::FileSeqInvalid;
            task->_callback(result);
            infile.close();
            return;
        }
        std::cout << "[续传] 文件: " << task->_name
            << ", seq: " << task->_seq
            << ", 进度: " << file_info->_trans_size
            << "/" << file_info->_total_size << std::endl;
    }
    // 计算当前偏移量
    std::streamsize offset = ((std::streamsize)task->_seq - 1) * MAX_FILE_LEN;
    if (offset >= file_info->_total_size) {
        std::cerr << "偏移量超出文件大小。" << std::endl;
        result["error"] = ErrorCodes::FileOffsetInvalid;
        task->_callback(result);
        infile.close();
        return;
    }
    // 定位到指定偏移量
    infile.seekg(offset);
    // 读取最多MAX_FILE_LEN字节
    char buffer[MAX_FILE_LEN];
    infile.read(buffer, MAX_FILE_LEN);
    //获取read实际读取多少字节
    std::streamsize bytes_read = infile.gcount();
    if (bytes_read <= 0) {
        std::cerr << "读取文件失败。" << std::endl;
        result["error"] = ErrorCodes::FileReadFailed;
        task->_callback(result);
        infile.close();
        return;
    }
    // 将读取的数据进行base64编码
    std::string data_to_encode(buffer, bytes_read);
    std::string encoded_data = base64_encode(data_to_encode);
    // 检查是否是最后一个包
    std::streamsize current_pos = offset + bytes_read;
    bool is_last = (current_pos >= file_info->_total_size);
    // 设置返回结果
    result["data"] = encoded_data;
    result["seq"] = task->_seq;
    result["total_size"] = std::to_string(file_info->_total_size);
    result["current_size"] = std::to_string(current_pos);
    result["is_last"] = is_last;
    infile.close();
    if (is_last) {
        std::cout << "文件读取完成: " << file_path_str << std::endl;
        RedisMgr::GetInstance()->DelDownLoadInfo(task->_name);
    }
    else {
        //更新信息
        file_info->_seq++;
        file_info->_trans_size = offset + bytes_read;
        //更新redis
        RedisMgr::GetInstance()->SetDownLoadInfo(task->_name, file_info);
    }
    if (task->_callback) {
        task->_callback(result);
    }
}

资源服务器每次收到请求后，由DownloadWorker从队列中获取请求，查询服务器资源，将资源按照seq计算偏移量最后读取数据发送给客户端。

客户端存储下载的资源

客户端需要存储服务器传输的资源

_handlers.insert(ID_IMG_CHAT_DOWN_RSP, [this](ReqId id, int len, QByteArray data) {
        Q_UNUSED(len);
        qDebug() << "handle id is " << id << " data is " << data;
        // 将QByteArray转换为QJsonDocument
        QJsonDocument jsonDoc = QJsonDocument::fromJson(data);
        // 检查转换是否成功
        if (jsonDoc.isNull()) {
            qDebug() << "Failed to create QJsonDocument.";
            return;
        }
        QJsonObject jsonObj = jsonDoc.object();
        if (!jsonObj.contains("error")) {
            int err = ErrorCodes::ERR_JSON;
            qDebug() << "parse create private chat json parse failed " << err;
            return;
        }
        int err = jsonObj["error"].toInt();
        if (err != ErrorCodes::SUCCESS) {
            qDebug() << "get create private chat failed, error is " << err;
            return;
        }
        qDebug() << "Receive download file info rsp success";
        QString base64Data = jsonObj["data"].toString();
        int seq = jsonObj["seq"].toInt();
        bool is_last = jsonObj["is_last"].toBool();
        QString total_size_str = jsonObj["total_size"].toString();
        qint64  total_size = total_size_str.toLongLong(nullptr);
        QString current_size_str = jsonObj["current_size"].toString();
        qint64  current_size = current_size_str.toLongLong(nullptr);
        QString name = jsonObj["name"].toString();
        auto file_info = UserMgr::GetInstance()->GetTransFileByName(name);
        if (file_info == nullptr) {
            qDebug() << "file: " << name << " not found";
            return;
        }
        file_info->_current_size = current_size;
        file_info->_rsp_size = current_size;
        file_info->_total_size = total_size;
        auto clientPath = file_info->_text_or_url;
        //Base64解码
        QByteArray decodedData = QByteArray::fromBase64(base64Data.toUtf8());
        auto file_path = clientPath + "/" + name;
        QFile file(file_path);
        // 根据 seq 决定打开模式
        QIODevice::OpenMode mode;
        if (seq == 1) {
            // 第一个包，覆盖写入
            mode = QIODevice::WriteOnly;
        }
        else {
            // 后续包，追加写入
            mode = QIODevice::WriteOnly | QIODevice::Append;
        }
        if (!file.open(mode)) {
            qDebug() << "Failed to open file for writing:" << clientPath;
            qDebug() << "Error:" << file.errorString();
            return;
        }
        qint64 bytesWritten = file.write(decodedData);
        if (bytesWritten != decodedData.size()) {
            qDebug() << "Failed to write all data. Written:" << bytesWritten
                << "Expected:" << decodedData.size();
        }
        file.close();
        qDebug() << "Successfully wrote" << bytesWritten << "bytes to file";
        qDebug() << "Progress:" << current_size << "/" << total_size
            << "(" << (current_size * 100 / total_size) << "%)";
        if (is_last) {
            qDebug() << "File download completed:" << clientPath;
            UserMgr::GetInstance()->RmvTransFileByName(name);
            //通知界面下载完成
            emit sig_download_finish(file_info, file_path);
        }
        else {
            //继续请求
            file_info->_seq = seq + 1;
            file_info->_last_confirmed_seq = seq;
            if (file_info->_transfer_state == TransferState::Paused) {
                //暂停状态，则直接返回
                return;
            }
            //组织请求，准备下载
            QJsonObject jsonObj_send;
            jsonObj_send["name"] = name;
            jsonObj_send["seq"] = file_info->_seq;
            jsonObj_send["trans_size"] = QString::number(file_info->_current_size);
            jsonObj_send["total_size"] = QString::number(file_info->_total_size);
            jsonObj_send["token"] = UserMgr::GetInstance()->GetToken();
            jsonObj_send["sender_id"] = file_info->_sender;
            jsonObj_send["receiver_id"] = file_info->_receiver;
            jsonObj_send["message_id"] = file_info->_msg_id;
            auto uid = UserMgr::GetInstance()->GetUid();
            jsonObj_send["uid"] = uid;
            QJsonDocument doc(jsonObj_send);
            auto send_data = doc.toJson();
            FileTcpMgr::GetInstance()->SendData(ID_IMG_CHAT_DOWN_REQ, send_data);
            //todo...通知界面更新进度
            emit sig_update_download_progress(file_info);
        }
    });

通过QFile类实现文件写入。

客户端进度显示

为了让客户端更为直观的显示下载进度，可以在收到服务器消息后，将文件下载进度同步给界面，同时显示支持暂停和继续

进度通知在上述逻辑中

_handlers.insert(ID_IMG_CHAT_DOWN_RSP, [this](ReqId id, int len, QByteArray data) {
    //...
    emit sig_update_download_progress(file_info);
});

同样是在ChatDialog构造函数中添加消息链接

    //接收tcp返回的下载进度信息
    connect(FileTcpMgr::GetInstance().get(), &FileTcpMgr::sig_update_download_progress,
        this, &ChatDialog::slot_update_download_progress);

进度处理槽函数

void ChatDialog::slot_update_download_progress(std::shared_ptr<MsgInfo> msg_info) {
    auto chat_data = UserMgr::GetInstance()->GetChatThreadByThreadId(msg_info->_thread_id);
    if (chat_data == nullptr) {
        return;
    }
    //更新消息，其实不用更新，都是共享msg_info的一块内存，这里为了安全还是再次更新下
    chat_data->UpdateProgress(msg_info);
    if (_cur_chat_thread_id != msg_info->_thread_id) {
        return;
    }
    //更新聊天界面信息
    ui->chat_page->UpdateFileProgress(msg_info);
}

在ChatPage中详细处理更新

void ChatPage::UpdateFileProgress(std::shared_ptr<MsgInfo> msg_info) {
    auto iter = _base_item_map.find(msg_info->_msg_id);
    if (iter == _base_item_map.end()) {
        return;
    }
    if (msg_info->_msg_type == MsgType::IMG_MSG) {
        auto bubble = iter.value()->getBubble();
        PictureBubble*  pic_bubble = dynamic_cast<PictureBubble*>(bubble);
        pic_bubble->setProgress(msg_info->_rsp_size, msg_info->_total_size);
    }
}

PicBubble中完成状态显示

void PictureBubble::setProgress(int value, int total_value)
{
    if (m_total_size != total_value) {
        m_total_size = total_value;
    }
    float percent = (value / (m_total_size*1.0))*100;
    m_progressBar->setValue(percent);
    if (percent >= 100) {
        setState(TransferState::Completed);
    }
}

断点续传

因为在客户端收到服务器通知的图片聊天信息的时候，已经通过sig_img_chat_msg将消息发送给ChatDialog添加到页面上了。同时传输了图片的状态为下载中。

点击继续和暂停的逻辑可以复用PicBubble的逻辑

void PictureBubble::onPictureClicked()
{
    switch (m_state) {
    case TransferState::Downloading:
    case TransferState::Uploading:
        // 暂停
        setState(TransferState::Paused);
        emit pauseRequested(_msg_info->_unique_name, _msg_info->_transfer_type);
        break;
    case TransferState::Paused:
        // 继续
        resumeState(); //
        emit resumeRequested(_msg_info->_unique_name, _msg_info->_transfer_type);
        break;
    case TransferState::Failed:
        // 重试
        emit resumeRequested(_msg_info->_unique_name, _msg_info->_transfer_type);
        break;
    default:
        // 其他状态可以实现查看大图等功能
        break;
    }
}

接下来我们响应暂停和继续，这部分逻辑也已经复用之前的逻辑即可

暂停逻辑

void ChatPage::on_clicked_paused(QString unique_name, TransferType transfer_type)
{
    UserMgr::GetInstance()->PauseTransFileByName(unique_name);
}
void UserMgr::PauseTransFileByName(QString name) {
    std::lock_guard<std::mutex> mtx(_trans_mtx);
    auto iter = _name_to_msg_info.find(name);
    if (iter == _name_to_msg_info.end()) {
        return;
    }
    iter.value()->_transfer_state = TransferState::Paused;
}

恢复逻辑

void ChatPage::on_clicked_resume(QString unique_name, TransferType transfer_type)
{
    UserMgr::GetInstance()->ResumeTransFileByName(unique_name);
    //继续发送或者下载
    if (transfer_type == TransferType::Upload) {
        FileTcpMgr::GetInstance()->ContinueUploadFile(unique_name);
        return;
    }
    if (transfer_type == TransferType::Download) {
        FileTcpMgr::GetInstance()->ContinueDownloadFile(unique_name);
        return;
    }
}
void UserMgr::ResumeTransFileByName(QString name)
{
    std::lock_guard<std::mutex> mtx(_trans_mtx);
    auto iter = _name_to_msg_info.find(name);
    if (iter == _name_to_msg_info.end()) {
        return;
    }
    if (iter.value()->_transfer_type == TransferType::Download) {
        iter.value()->_transfer_state = TransferState::Downloading;
        return;
    }
    if (iter.value()->_transfer_type == TransferType::Upload) {
        iter.value()->_transfer_state = TransferState::Uploading;
        return;
    }
}

发送继续下载信号通知FileTcpMgr继续下载

void FileTcpMgr::ContinueDownloadFile(QString unique_name) {
    emit sig_continue_download_file(unique_name);
}

FileTcpMgr响应下载逻辑

void FileTcpMgr::slot_continue_download_file(QString unique_name) {
    auto file_info = UserMgr::GetInstance()->GetTransFileByName(unique_name);
    if (file_info == nullptr) {
        return;
    }
    if (file_info->_current_size >= file_info->_total_size) {
        qDebug() << "file has received finished";
        return;
    }
    //组织请求，准备下载
    QJsonObject jsonObj_send;
    jsonObj_send["name"] = unique_name;
    jsonObj_send["seq"] = file_info->_seq;
    jsonObj_send["trans_size"] = QString::number(file_info->_current_size);
    jsonObj_send["total_size"] = QString::number(file_info->_total_size);
    jsonObj_send["token"] = UserMgr::GetInstance()->GetToken();
    jsonObj_send["sender_id"] = file_info->_sender;
    jsonObj_send["receiver_id"] = file_info->_receiver;
    jsonObj_send["message_id"] = file_info->_msg_id;
    auto uid = UserMgr::GetInstance()->GetUid();
    jsonObj_send["uid"] = uid;
    QJsonDocument doc(jsonObj_send);
    auto send_data = doc.toJson();
    FileTcpMgr::GetInstance()->SendData(ID_IMG_CHAT_DOWN_REQ, send_data);
}

通过上述逻辑可以实现客户端的断点下载和暂停。

效果演示

源码链接

https://gitee.com/secondtonone1/llfcchat

注意第二季分支为Season_2
